DX51D+AZ120 Galvanized Galvalume Steel Coils
Adequate inventory and complete specifications.
Steel coils can provide galvanized coils as well as other hot-rolled and cold-rolled carbon steel coils, stainless steel coils, aluminum coils, etc.
- Overview
- Recommended Products
Product Induction
Due to its wide range of applications, the DX51D+AZ120 galvanized steel coil is an excellent choice for industries across the board. Compared to traditional galvanized steel, its aluminum-zinc alloy coating offers superior corrosion resistance, making it ideal for applications exposed to humid and other corrosive environments.
In the construction industry, these steel coils are commonly used for roofing, wall panels, and structural components, ensuring buildings can withstand harsh weather conditions and extending their service life. Home appliance manufacturers leverage their durability and aesthetic appeal in products such as refrigerators, washing machines, and HVAC systems to enhance performance and extend service life.
In renewable energy applications, such as solar panel frames and mounting systems, this galvanized steel coil offers the necessary durability to withstand outdoor environmental conditions while maintaining structural integrity over the long term. Similarly, in power facilities, it provides reliable protection for equipment and infrastructure, ensuring uninterrupted operation and reducing maintenance costs.
Overall, DX51D+AZ120 galvanized steel coils represent a reliable and cost-effective choice for enhancing the durability and efficiency of various products and structures.
| Product Name | DX51D+AZ120 Galvanized Galvalume Steel Coils |
| Material |
DX51D and we can supply SGHC、SGCC、BZCL,DX51D+Z、DC51D+ZDX52D+Z、DC52D+Z、SGCD1,320、SS340、SGH340-XLD、S350GD+Z、G350D+Z,CSCSS 50、SS 50-1、SS Gr50、GR50,S 55、SS 60、SGC490、SGH490、SS380、SS410、SS480、SS 70、HR300LA、S420GD+Z、G420D+Z,SGC540、SGC570、SGH540、S500GD+Z、G500GD+Z and other grades. |
Coating weight |
120 g/m² (double-sided) |
| Thickness | 0.2mm-6mm |
| Width | 20mm-2000mm |
| Coil Weight | 3–12 tons |
| Composition | 55% aluminum, 43.4% zinc, 1.6% silicon |
| Application | Construction, home appliance manufacturing, automotive, new energy, power infrastructure, etc. |
chemical composition
| Grade | C | Si | Mn | P | S | Al |
| DX51D | ≤ 0.18% | ≤ 0.50% | ≤ 1.20% | ≤ 0.045% | ≤ 0.045% | ≥ 0.010% |
mechanical properties
| Grade | tensile strength（MPa） | yield strength（MPa） | Elongation% |
| DX51D | 270-500 MPa | 240-380 MPa | ≥ 22% |
Key Features and Advantages:
Corrosion Resistance: Corrosion resistance is 3–6 times that of pure galvanized steel sheets; it can withstand over 1,000 hours of salt spray testing without red rust.
Heat Resistance: Withstands temperatures above 300°C and exhibits excellent resistance to high-temperature oxidation.
Thermal Reflectivity: Thermal reflectivity is twice that of galvanized steel sheets, making it suitable for use as a thermal insulation material.
Processability: Excellent stamping, bending, and roll forming capabilities.
Weldability: Compatible with various welding methods, including spot welding and arc welding.
Cost-Effectiveness: Reduces the cost per kilowatt-hour over a 25-year lifecycle, offering significant advantages in total cost of ownership.

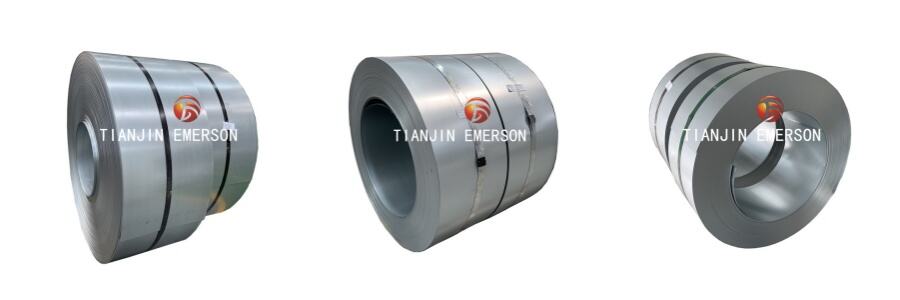

Galvanized Steel Coil Pictures
FAQ
Q: What is DX51D+AZ120?
A: DX51D+AZ120 is a steel sheet with a 55% aluminum-zinc alloy coating, where:
DX51D: Low-carbon steel substrate for cold forming (European standard grade, corresponding to Chinese national standard DC51D)
AZ: Aluminum-zinc alloy coating
120: Total coating weight on both sides: 120 g/m²
Q: Why do cut edges on galvanized-aluminum sheets rust easily? How can this be addressed?
A: Cause: The AZ coating contains up to 55% aluminum and only 43.4% zinc, resulting in weaker anodic protection. The exposed steel substrate at the cut edges is prone to electrochemical corrosion in humid environments.
Solution: Apply anti-rust paint, perform edge folding, use fingerprint-resistant sheets, or upgrade the material.
