Custom 3mm 5mm 25mm S235JR Hot Rolled Carbon Steel Sheet Plate Cut to Length
- Custom sizes
- Steel plates can be cut to your specifications
- Large inventory
- Factory visiting available
- Overview
- Recommended Products
Product Induction
The distinction between thin plates and medium-thick plates, along with their respective application scenarios, constitutes a fundamental consideration in material usage,thin sheets typically range from 0.4 to 4 mm in thickness, while medium-thick plates exceed 4 mm.
Thin plates are typically cold-rolled or undergo simple hot rolling, featuring high dimensional accuracy and smooth surfaces. Free of scale, they can be used directly without coating. With moderate strength, they are weldable but require attention to thermal deformation.
Medium-to-thick plates are primarily hot-rolled. Due to increased thickness, they exhibit higher strength and toughness, resulting in superior impact resistance and excellent weldability, making them suitable for high-energy welding. However, their dimensional accuracy is generally lower due to greater plate thickness. Surface treatments such as corrosion protection are required for hot-rolled plates.

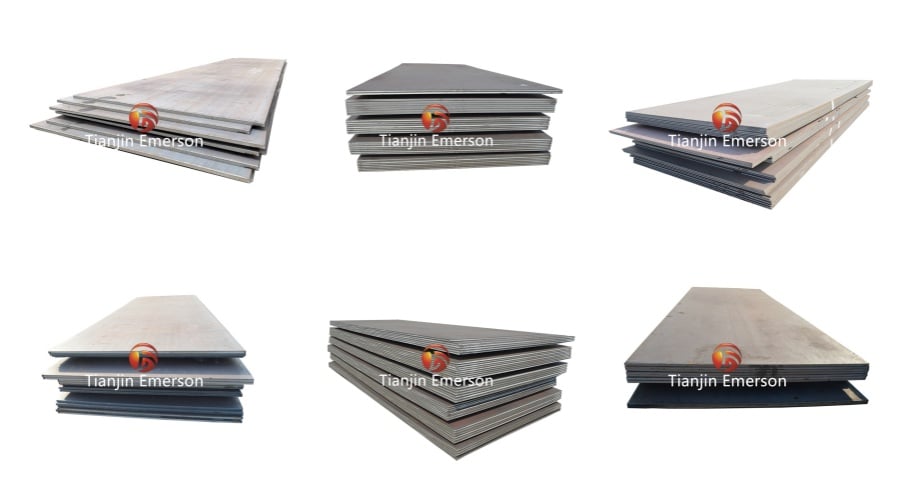

Products Pictures
Chemical Composition
| Grade | C max | Si max | Mn max | P max | S max |
| S235JR | 0.22 | 0.35 | 0.65 | 0.035 | 0.035 |
Mechanical Properties
| Grade | tensile strength（MPa） | yield strength（MPa） | Elongation% |
| S235JR | 360-510 | ≥235 | ≥18 |
Available Materials
Common Carbon Steel: A36,A36M,JJ195L,11235L,JJ235M,SAPH400-C,SS40-ZJ,A36-001,SS40-FST,Q235C Q235D
Checkered Plate:BDQ235B,BDSS400TS,BDQ235B-Z01
Cold Rolled base Material:Q195,SPHC,SPHD,DD11,DD12,SAE1006/1008/1010/1012/1016/1018
Low Alloy High-Strength Steel:Q345B,Q355B-ZH,Gr50,S235JR,Q355C,S275JR,BDQ355B,S355J2
Tool Steel:20#,35#,40#,S45C
and other automotive steel, construction machinery steel, container steel, weather resistant steel.
Specification
| Product Name | Custom 3mm 5mm 25mm S235JR Hot Rolled Carbon Steel Sheet Plate Cut to Length |
| Technique | Hot Rolled(common) or Cold Rolled |
| Grade | S235JR |
| Standard | EN 10025 |
| Width | steel sheet:500-2500mm,medium thick steel plate:1000-3000mm |
| Thickness | steel sheet:0.4-4mm,medium thick steel plate:4.5-25mm,25-100mm |
| Surface Treatment | Pickled & Oiled,Hot-Dip Galvanizing,PPGI,Painting/Powder Coated or customer specified |
| Certificate | ISO9001,RoHS |
| Alloy Or Not | Not Alloy |
| Packing | According to transportation requirements |
| Application | Building frame, bridge auxiliary structure, petrochemical pipeline support, reaction tower skeleton, steel grating platform, cold-formed steel, light steel keel, etc. |
Performance Advantages of S235JR
S235JR is a non-alloy structural steel.
1.S235jr exhibits high yield strength and tensile strength, ensuring both lightweight design and plasticity safety.
2.With C ≤ 0.22% and P/S ≤ 0.035%, its low carbon and low sulfur-phosphorus composition allows direct high heat input welding without preheating, demonstrating low crack sensitivity.
3.With moderate hardness, it resists micro-cracking during bending, punching, and deep drawing, making it suitable for complex section forming.
4.Compatible with various steel systems including I-beams and channel beams.Full inventory available with ample specifications.
S235JR Application Area
1.Building Framing: Roof beams for multi-story factories, sports stadiums, and airport terminals.
2.Bridge Auxiliary Structures: Pedestrian walkway beams, guardrail posts, bearing pads, etc.
3.Petrochemical/Power Pipe Racks: Plant area pipe racks, supports/hangers, cable trays.
4.Cold-Formed Steel & Light Steel Studs: Manufacture purlins, door frames, shelving columns with excellent formability and minimal springback.
5.Export machinery: Mining conveyor trusses, agricultural machinery frames, container corner fittings, etc.

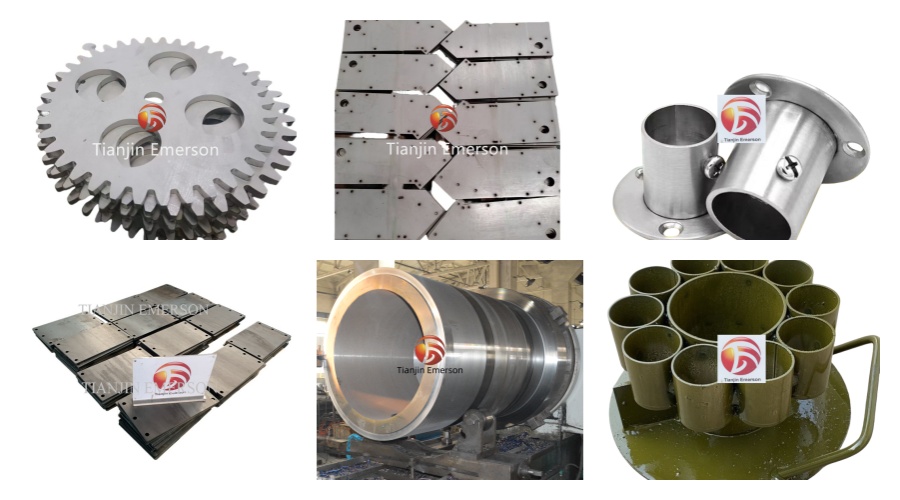

Sheet Metal Fabrication
FAQ
Q:What type of steel is S235JR?
A:S235JR is a non-alloy structural steel specified in European standard EN 10025-2, with a yield strength ≥235 MPa and tensile strength ranging from 360 to 510 MPa.
Q: Can it replace Q235B?
A: Q235B and S235JR have similar strength grades, but S235JR has mandatory impact testing requirements and stricter sulfur and phosphorus control. It also offers superior weldability and low-temperature toughness compared to Q235B. For low-temperature projects, S235JR is recommended as the preferred choice.
Q: Is preheating required for welding?
A: The thickness determines whether preheating is necessary for welding. Generally, preheating is not required when the plate thickness is ≤40 mm.
Q: What is the minimum temperature it can withstand?
A: Standard impact temperature: 0°C.
Q: How corrosion-resistant is S235JR?
A: S235JR is not inherently corrosion-resistant steel. It will rust when exposed to the elements, so surface treatments such as galvanizing, painting, or powder coating are required.
Q: Do you support “delivery based on actual weight”?
A: Yes, all raw materials are settled based on the weighed weight.
