- Overview
- Recommended Products
- Excellent cold-forming properties, suitable for bending, stamping, and light drawing operations
- Superior surface finish, ideal for subsequent coating, painting, or electroplating processes
- Tight dimensional tolerances (±0.05 mm for 3 mm thickness)
- Consistent mechanical properties, ensuring reliable machinability
- A cost-effective solution for the automotive, home appliance, and construction industries
Product Induction

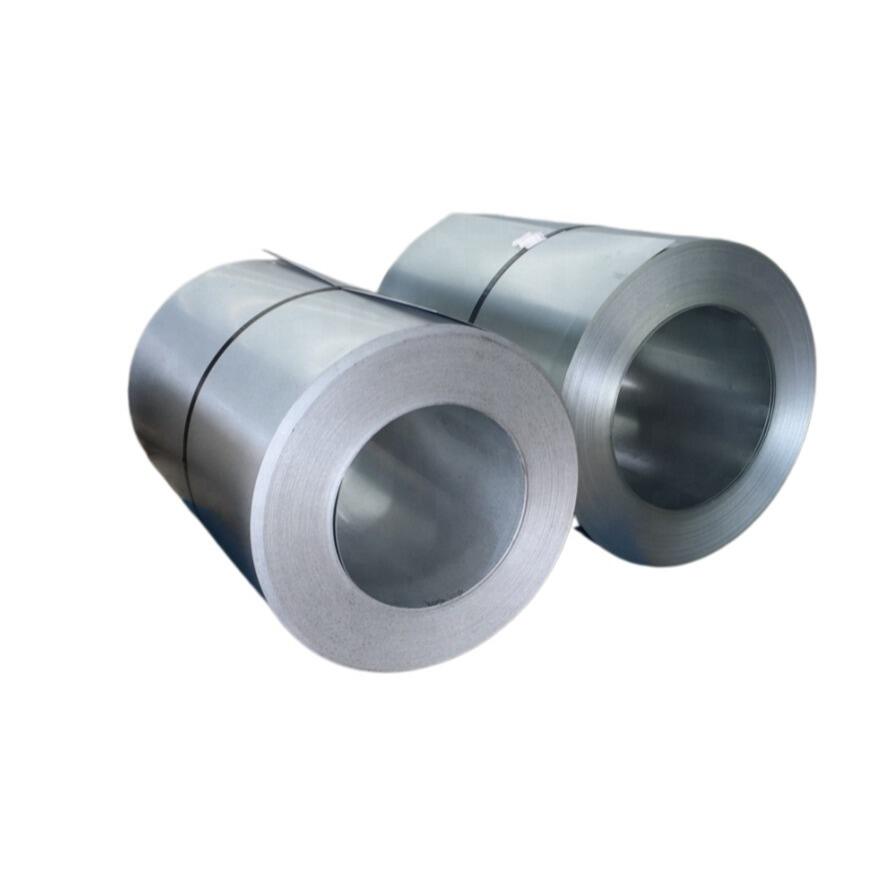

DC01 cold-rolled steel coils are a high-quality, low-carbon cold-rolled flat steel product manufactured in strict accordance with the European standard EN 10130. Our 1,250 mm wide × 3 mm thick grade is specifically designed for general cold-forming applications, offering an optimal balance between formability, surface quality, and dimensional accuracy.
Here, “D” stands for the cold-drawn process, “C” for the cold-rolled process, and “01” for the base quality grade. As the most widely used commercial-grade cold-rolled steel in European and global manufacturing markets, DC01 has become the industry benchmark.
Key Advantages:
DC01 Cold Steel Coil Specification
Chemical Composition
| Grade | C | Mn | P | S | Al |
| DC01 | ≤ 0.12 | ≤ 0.60 | ≤ 0.045 | ≤ 0.045 | ≤ 0.07 |
Mechanical Properties
| Grade | Tensile Strength | Yield Strength | Elongation |
| DC01 | 270-410 MPa | ≤ 280 MPa | ≥ 28% |
| Standard Specification | Available Options | |
| Thickness | 3.0mm | 0.30-4.00mm |
| Width | 1250mm | 600-2000mm custom |
| Coil Weight | 5-12 MT | 5-12 MT |
| Coil ID | 508mm | Customized |
| Coil OD | Max 2000mm | Customized |
| Length (Sheet) | 2500-6000mm | Custom cutting available |
Why Choose Our DC01 1250mm Cold-Rolled Coils?
Precision Cutting: 1250mm width with tolerances controlled within ±0.5mm to minimize scrap
Flatness Guarantee: Tension leveling services available to meet the demands of critical automotive applications
Surface Consistency: Continuous in-line surface inspection and defect marking
Custom Processing: Cut-to-length, slitting, edge finishing, and punching
Fast Delivery: Standard lead time of 15–25 days; expedited delivery for in-stock products within 7–10 days
Technical Support: Forming simulations and welding process recommendations
FAQ
Q: Is DC01 suitable for outdoor use without surface treatment?
A: No, it is not. DC01 has low corrosion resistance and will rust when exposed to moisture. For outdoor applications, it must be painted, powder-coated, or treated with another form of surface protection to meet corrosion resistance requirements.
Q: What is the difference between 3mm-thick DC01 and DC03?
A: DC03 offers superior deep-drawing performance, with a lower yield strength and higher elongation. For simple bending and forming, DC01 is more cost-effective. If complex shapes or deep drawing are required, DC03 is recommended.
Q: Can DC01 be used in high-temperature environments?
A: DC01 maintains stable performance within the 150–200°C range.
Q: What is the minimum order quantity (MOQ) for 1250mm × 3mm DC01?
A: The standard MOQ is 1 ton per specification.
Q: Do you provide material certifications?
A: Yes. We hold ISO 9001, RoHS, and SGS certifications, among others.
