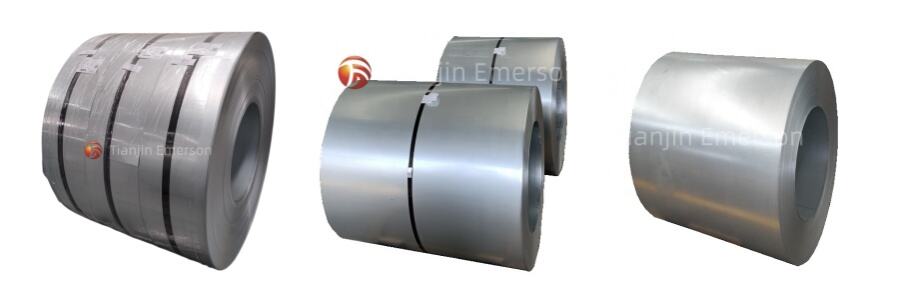

ST12 0.5-3mm Thickness Cold Rolled Carbon Steel Sheets Coils
supply cold rolled steel coil,cold rolled steel plate sheet.
Complete materials and inventory.
- Overview
- Recommended Products
Product Induction
ST12 cold-rolled steel coils comply with the German industrial standard DIN 1623 and are a versatile material known for their excellent ductility and malleability. Composed primarily of iron with a low carbon content, they are ideally suited for applications requiring extensive cold working, such as repeated stamping and forming. ST12’s balanced mechanical properties enable it to perform exceptionally well in a wide range of cold-working scenarios.
Thanks to its adaptability and performance characteristics, this steel grade is widely used across multiple industries. In the electronics and electrical equipment sectors, ST12 is highly regarded for its ability to be precisely formed into complex shapes without compromising structural integrity. In the hardware and furniture industries, its ease of processing and smooth surface make it the preferred choice for producing durable and aesthetically pleasing components. In the construction and decoration sectors, ST12 is frequently used to fabricate various structural components due to its strength and formability, effectively meeting both functional requirements and aesthetic goals. Finally, in the manufacturing of household appliances, its reliability and formability ensure the durability and efficiency of the final products.
Overall, ST12 cold-rolled steel coils are a highly regarded material in the manufacturing and construction industries, offering a perfect combination of strength, ductility, and versatility that meets the demands of modern industry.

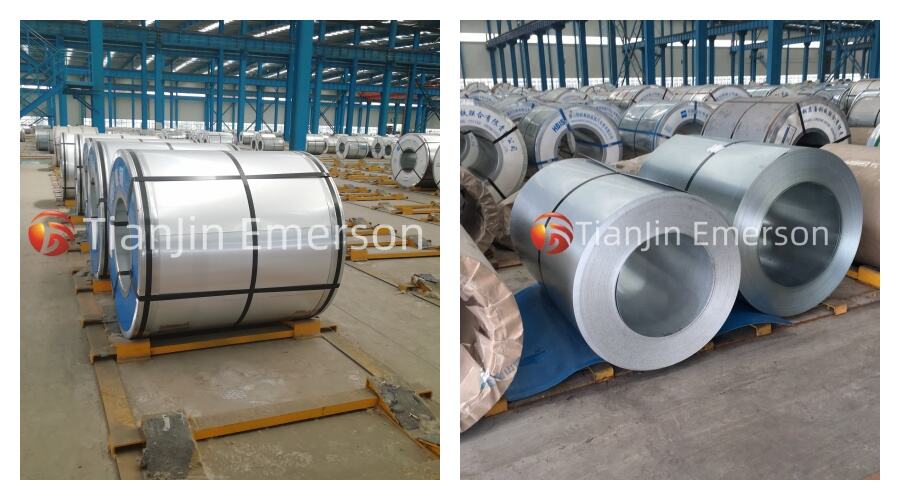

Factory Stock
Our factory maintains a large inventory of cold-rolled coils. Here is the specification sheet for ST2. If you have other requirements such as hot-rolled coils, steel pipes, etc., please contact us via the email address listed in the FAQ section.
| 0.4*1250*C | 0.5*1250*C | 0.6*1500*C | 0.7*1250*C | 0.7*1500*C | 0.8*1000*C | 0.8*1250*C |
| 0.8*1500*C | 0.9*1250*C | 0.9*1500*C | 1.0*1250*C | 1.0*1500*C | 1.1*1500*C | 1.2*1250*C |
| 1.4*1500*C | 1.2*1500*C | 1.5*1250*C | 1.5*1500*C | 1.8*1250*C | 1.8*1500*C | 1.9*1250*C |
| 2.0*1000*C | 1.9*1500*C | 2.0*1250*C | 2.0*1500*C | 2.05*1250*C | 2.49*1250*C | 2.49*1500*C |
| 0.4*1000 | 0.5*1000 | 0.6*1000 | 0.7*1000 | 1.1*1250 | 0.9*1000 | 1.0*1000 |
| 1.2/1.4*1000 | 1.1*1000 | 1.5/1.8*1000 | 1.9*1000 | 1.4*1250 | 1.5*1250 | 1.8*1250 |
| 2.49*1250 | 3.0*1250 |
Specification
| Product Name | ST12 0.5-3mm Thickness Cold Rolled Carbon Steel Sheets Coils |
| Size |
Thickness:0.5-3mm Width:1000mm,1250mm,1500mm |
| Cold Rolled Material |
SPCC,DCO1,SAE1008,SPCC-SD,SPCC-A,SPCC-SR,DCO1-D, DCO1-MD,DCO1(03),DC01-TQC,SPCC-SC,SPCC-TC,SPCC-YT,THD1,TTC2 DCO1-NEA,DCO1-PE,LQ215,Q235,Q235B,SPCC-FM,SPCC-LT,SPCC-MS,THD2,THD3.TLA,TS330T,THS1 DC01-QC,DC01-B,DC01-Q,SPCC-CP,DCO1-EK,DCO3,ST13,SPCD,Q345B,HCDI DCO1-BD,HS1,SPCC-J1,DCO1-YT,DC03(02),DC03-NEA,HS2 HS3-DH,HS3,DC03-IF,C590,20,HCD3 |
| Certificate | RoHS,ISO9001 |
| Application | Automotive Manufacturing, Home Appliance Manufacturing, Construction and Interior Design, Hardware and Furniture, Electronics and Electrical |
ST12 chemical composition and mechanical properties:
| Grade | C | Si | Mn | P | S | N | tensile strength | yield strength（MPa） | Elongation% |
| ST12 | ≤0.10% | ≤0.03% | ≤0.50% | ≤0.045% | ≤0.045% | ≤0.007% | 270-410 MPa | ≤280 MPa | ≥28% |
Cold-Rolled Coil Production Process
Raw Material Preparation: Hot-rolled steel coils are uncoiled, straightened, and welded at the ends to form a continuous steel strip.
Pickling: Surface scale is removed using hydrochloric acid; after rinsing and drying, the strip is trimmed to the specified width.
Cold Rolling: A multi-stand continuous rolling mill reduces the strip thickness to the target dimension, inducing work hardening.
Degreasing and Cleaning: Rolling oils are removed from the surface via electrolytic degreasing and brushing to prevent sticking during annealing.
Annealing: The strip is heated to the recrystallization temperature in a protective atmosphere to eliminate work hardening and restore plasticity.
Leveling: Light rolling improves flatness, eliminates yield plateaus, and controls surface roughness.
Finishing and Oil Application: After rewinding, slitting, and surface inspection, anti-rust oil is applied to protect the finished product.
Packaging and Storage: The product is weighed, bundled, packaged, and then stored.
FAQ
Q: Is ST12 hot-rolled or cold-rolled? What are its characteristics?
A: ST12 is a cold-rolled steel sheet. Compared to hot-rolled sheets, it offers the following advantages: high surface finish, no scale, high dimensional accuracy, tight thickness tolerances (±0.03–0.05 mm), stable mechanical properties, and good workability. It can be used directly for surface treatments such as electroplating and powder coating.
Q: What are the standard specifications?
A: Standard specifications: Thickness: 0.3 mm to 3.0 mm (common: 0.5, 0.8, 1.0, 1.2, 1.5, 2.0, 2.5, 3.0 mm); Width: 600 mm to 1500 mm (common: 1000, 1250, 1500 mm).
Q: What is ST12 used for?
A: ST12 is a basic commercial-grade cold-rolled steel.
Q: What are the available delivery conditions?
A: Common delivery conditions:
Cold-rolled hard condition (1B): Work-hardened condition with high strength
Annealed soft condition (SD/SB): Annealed in a bell annealing furnace, with reduced yield strength and improved ductility, suitable for further processing
