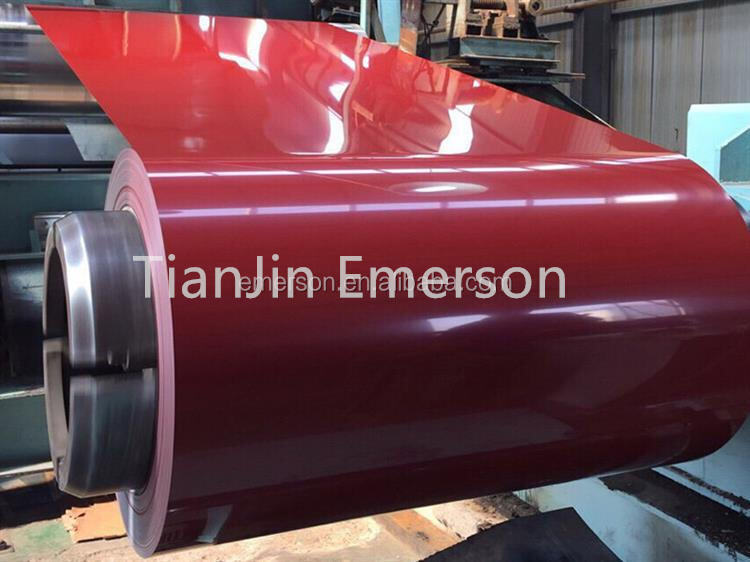

Color Coated Coil Aluzinc Galvalume Steel Coil Sheet

Product Induction

High-quality color-coated aluminum-zinc and galvanized steel coils represent the perfect combination of corrosion-resistant substrate technology and advanced polymer coating systems. These coils combine the exceptional durability of 55% aluminum-zinc alloy-coated steel with high-performance architectural finishes, delivering outstanding aesthetics and structural durability for demanding architectural and industrial applications.

Aluminum-Zinc Coated Substrate

Each coil of steel is hot-dip coated with an alloy consisting of 55% aluminum, 43.4% zinc, and 1.6% silicon, offering 2 to 6 times the corrosion resistance of traditional galvanized steel. This proprietary metallurgical formulation creates a dense intermetallic compound barrier that protects cut edges and scratches through sacrificial electrochemical action, ensuring decades of maintenance-free performance even in coastal, industrial, or high-humidity environments.

Available Base Material Grades:

Commercial Grade (CQ): Offers excellent formability, suitable for complex contour forming and bending operations

Deep Drawing Grade (DQ): Features enhanced ductility, suitable for deep-drawn parts and complex shapes

Structural Grade (SQ): High-strength grade, suitable for load-bearing and structural applications

Fully Hardened (FH): Offers the highest strength, suitable for rigid panels and applications requiring extremely low deflection

Color Range and Surface Finish Options

Standard Color Chart:

Comprehensive RAL Classic and RAL Design color matching, including:

Architectural white and off-white (RAL 9010, 9016, 1013)

Metallic silver, gray, and charcoal tones (RAL 7001, 7040, 7024)

Earth tones and terracotta (RAL 8004, 8023, 3012)

Corporate standard blues and greens (RAL 5012, 6018, 6029)

Custom color matching based on project specifications

Specification

Application

Construction: Installation of eaves, fascia boards, and coping; rain screens and ventilated curtain wall systems; soundproofing and insulation panel cladding.

Industrial Buildings: Factory and warehouse roofs; exterior walls and equipment enclosures for processing plants; wall panels for cleanrooms and controlled environments; construction of cold storage and refrigeration facilities

Infrastructure and Transportation: Tunnel linings and portal structures; bridge deck and under-deck protection; manufacturing of prefabricated and modular buildings; construction of train stations and airport terminals

Agriculture and Commercial: Roofs for dairy farms and livestock facilities; construction of grain silos and storage facilities; exterior facades for retail complexes and shopping centers; exterior cladding for restaurants and hotels; gas stations and canopy structures

Special Applications: Solar panel mounting system integration; green roof and photovoltaic substrate preparation; electromagnetic shielding enclosures; sanitary food processing environments; coastal and marine construction

FAQ

Q: What are pre-painted steel coils, and how do they differ from regular steel?

A:Pre-painted steel coils—also known as pre-coated steel sheets or PPGI/PPGL—are steel products that have been pre-coated with paint at the factory before hot-dip galvanized or aluminum-zinc/galvanized steel leaves the plant. Unlike post-painted steel, our coating process ensures uniform paint film thickness, excellent adhesion, and consistent color throughout the entire project. You receive material that is ready for immediate fabrication, eliminating delays, weather-related issues, and quality inconsistencies associated with on-site painting.

Q: What range of thicknesses does your company offer? What are the most common specifications?

A: Our standard inventory includes base material thicknesses ranging from 0.30 mm to 1.50 mm. Other sizes are available upon request.

Q: Can you match specific colors from RAL, Pantone, or national standards?

A: Absolutely. We keep over 200 RAL Classic colors in stock and are ready to ship them at any time.

Q: How much can your company’s containers hold?

A: Container loading capacity:

20-foot container: 20–25 tons (depending on the diameter of the coils)

40-foot container: up to 25–27 tons

Bulk carrier: 500–5,000 tons (chartered vessel)

Q: Can you deliver the goods to my warehouse, or only to the port?

A: We offer flexible terms of international trade:

FOB — Port of Loading (Major Chinese ports: Tianjin, Shanghai, Qingdao)

CIF/CFR — Delivered to your port of destination

DAP/DDP — Delivered to warehouse (available in select countries only)

Q: How can I get your quotation as soon as possible?

A:Please contact

Email:[email protected]

Wechat/WhatsApp/Mobile: +8613512028034
