- Overview
- Recommended Products
- Selection of high-quality hot-rolled or cold-rolled steel
- Thickness and width precision control
- Continuous galvanizing line
- Zinc coating weight control within ±5g/m²
- Skin pass for surface flatness
- Alkaline degreasing and cleaning
- Chemical conversion coating (chromate-free options available)
- Passivation treatment for enhanced corrosion resistance
- Epoxy or polyester primer application
- Oven curing for optimal adhesion
- Precision roller coating system
- Film thickness monitoring and control
- Multi-zone curing oven
- 100% surface inspection
- Coating thickness measurement
- Mechanical property testing
- Protective film application and steel strapping
Product Overview

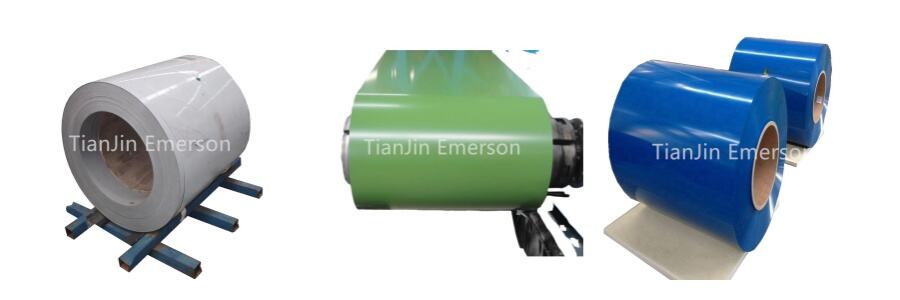

PPGI (pre-painted galvanized iron) colored galvanized steel coils are a high-quality steel product manufactured through an integrated continuous process that combines hot-dip galvanizing, surface pretreatment, and organic coating. Our customized PPGI steel coils offer exceptional corrosion resistance, an attractive appearance, and versatile processing capabilities, meeting the diverse needs of various industrial and construction sectors.
Specification
| Product Name | Customized PPGI Color Coated Galvanized Steel Sheet in Coil |
| Base Material | Hot-dip galvanized steel (DX51D, DX52D, DX53D, S280GD, S350GD, S550GD) |
| Thickness | 0.12mm - 1.5mm |
| Width | 600mm - 1,500mm |
| Coil Weight | 3 - 8 metric tons |
| Zinc Coating | Z40 - Z275 (40-275g/m²) |
| Available Colors | RAL Standard 200+ colors |
| Tensile Strength | 270 - 550 MPa |
| Yield Strength | 180 - 450 MPa |
| Elongation | ≥18% |
Production Process
Step 1: Base Material Preparation
Step 2: Hot-Dip Galvanizing
Step 3: Surface Pretreatment
Step 4: Primer Coating
Step 5: Top Coat Application
Step 6: Quality Inspection & Packaging
Application
Architecture and Construction: Roofing and wall cladding systems, sandwich panel manufacturing, garage doors and roller shutters, ceilings, partition systems, and rain gutters and downspouts
Home Appliances: Refrigerator panels and doors, washing machine cabinets, air conditioner housings, microwave oven housings, water heater tanks
Transportation: Automotive body panels and trailers, container manufacturing, railway passenger car interiors, bus and coach manufacturing
Furniture and Interior Design: Office furniture systems, storage cabinets and shelving, decorative ceilings, elevator interior panels
Industrial Equipment: Electrical control cabinets, HVAC ductwork, agricultural buildings and equipment, solar mounting structures
Why Choose Us
Over 15 years of manufacturing experience
Annual production capacity of 300,000 metric tons of color-coated steel coils
Global export network
Our products have been successfully sold to over 80 countries across Southeast Asia, the Middle East, Africa, Europe, and South America.
We assign dedicated account managers to provide multilingual communication support and maintain a responsive after-sales service team.
Innovation and R&D: We continuously develop new coating formulations, surface treatment technologies, and sustainable manufacturing solutions.
FAQ
Q: What is the difference between PPGI and PPGL?
A: PPGI uses hot-dip galvanized steel as its substrate (galvanized coating), while PPGL (pre-painted galvanized-aluminum steel sheet) uses galvanized-aluminum steel as its substrate (a coating containing 55% aluminum, 43.4% zinc, and 1.6% silicon). PPGL offers excellent corrosion resistance and heat reflectivity, making it ideal for harsh environments and high-temperature applications. PPGI, on the other hand, is more cost-effective and suitable for general-purpose applications.
Q: What thickness specifications does your company offer?
A: The thickness range of the pre-painted galvanized steel (PPGI) coils we manufacture is 0.12 mm to 1.5 mm. Standard thicknesses for roofing applications are typically 0.30 mm to 0.60 mm, while home appliance and furniture applications usually require 0.40 mm to 1.0 mm. Within this range, we can produce custom thicknesses with a tolerance of ±0.02 mm.
Q: What is the standard width of your PPGI coils?
A:Standard widths range from 600mm to 1,500mm. Common specifications include 914mm, 1,000mm, 1,200mm, and 1,250mm. We also provide slitting services to cut coils to your specific width requirements, with minimum slit width of 50mm depending on thickness.
Q: How many colors are available?
A:We offer 200+ standard RAL colors. Popular choices include RAL 9016 (Traffic White), RAL 9002 (Grey White), RAL 3005 (Wine Red), RAL 5005 (Signal Blue), RAL 6005 (Moss Green), and RAL 8017 (Chocolate Brown). Custom color matching is available upon request with minimum order quantities.
