Sheet Metal Fabrication 0.4-50mm Thickness HR370B Laser Cutting Parts
- can cut all material sheet
- support OEM/ODM customized
- Overview
- Recommended Products
Product Induction
HR370B laser-cut parts can be fabricated in a single pass using a 20,000V laser cutting machine. Materials include carbon steel plates, stainless steel plates, and aluminum alloys, with a maximum cutting thickness of 50mm. Positioning accuracy is ≤ ±0.03 mm, repeat positioning is ≤ ±0.01 mm, and contour accuracy is consistently maintained within 0.05 mm. Parts are ready for direct assembly without secondary machining. Cut edges exhibit a bright finish with taper <0.05 mm, slag thickness <0.1 mm, and Ra ≤6 μm, significantly reducing subsequent grinding requirements. The heat-affected zone is controlled within 0.2 mm, with overall sheet deformation <0.5 mm/m, providing an excellent reference surface for subsequent welding and coating.
Subsequent surface treatments can be applied per customer requirements. Our facilities include polishing machines to refine HR370B laser-cut parts, maintaining their aesthetic appeal. Additional surface treatments such as galvanizing and spray painting are also available.
Should customers require bending, welding, or drilling, our factory utilizes bending machines, welding equipment, and drilling machines to process metal parts.

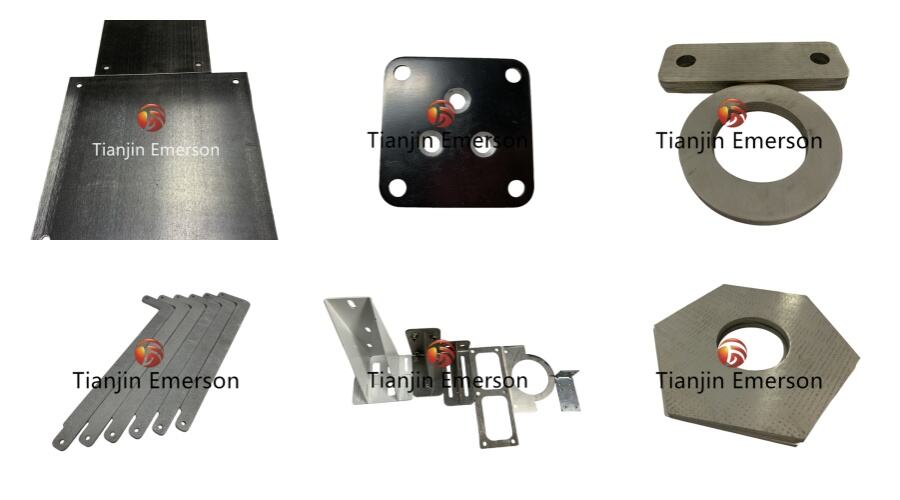

Product Pictures
can do all kinds of material laser cutting steel sheet.
Specification
| Product Name | Sheet Metal Fabrication 0.4-50mm Thickness HR370B Laser Cutting Parts |
| machine | 20000V laser cutting machine |
| thickness can be cut | within 50mm |
| Size | customized |
| Shape | can be customized |
| Grade | HR370B,and all material grade can be produced |
| other processing services | bending welding tapping cnc machining service |
| OEM/ODM | available |
| surface treatment | galvanized,painting,powder coated,polishing |
HR370B Chemical Composition and Mechanical Properties
chemical composition:
| Grade | C max | Si max | Mn max | P max | S max |
| HR370B | 0.21 | 0.3 | 1.5 | 0.035 | 0.035 |
mechanical properties:
| Grade | tensile strength（MPa） | yield strength（MPa） | Elongation% |
| HR370B | ≥ 370 MPa | ≥ 235 MPa | ≥ 32 % |
Advantages of the HR370B laser cutting parts
HR370B is an automotive structural steel whose laser-cut components exhibit the following advantageous characteristics after laser finishing:
1.High dimensional and geometric accuracy: Achieves ±0.03 mm precision in a single laser pass, enabling direct assembly post-cutting.
2.Low heat input and minimal distortion: The concentrated laser beam ensures excellent flatness after cutting, providing an optimal reference surface for subsequent robotic welding and automated clamping.High material utilization and efficiency.
3.Program-controlled cutting paths enable rapid switching between V/Y/K-type bevels (0–45°), completing weld bevel formation in a single pass.
4.The HR370B cut parts can reduce the overall cost by 20% while shortening the manufacturing cycle by 30%.
Application areas of HR370B laser cutting parts
Automotive & Rail Transportation: Lightweight structural components including body frames, cross members, longitudinal beams, battery trays, train skirt panels, and interior trim brackets;
New Energy Equipment: Wind turbine hub plates, photovoltaic mounting brackets, energy storage enclosures, and battery pack housings;
Precision Sheet Metal: Elevator liners, home appliance housings, and air conditioner compressor base plates;
Construction Machinery: Excavator bucket side plates, crane boom sections, concrete pump truck connecting rods;
Aerospace & Defense: UAV frames, missile transport cases, ground radar mounts;
Laser/Robotics Industry: High-rigidity bases, crossbeams, module side plates, gearbox housings.

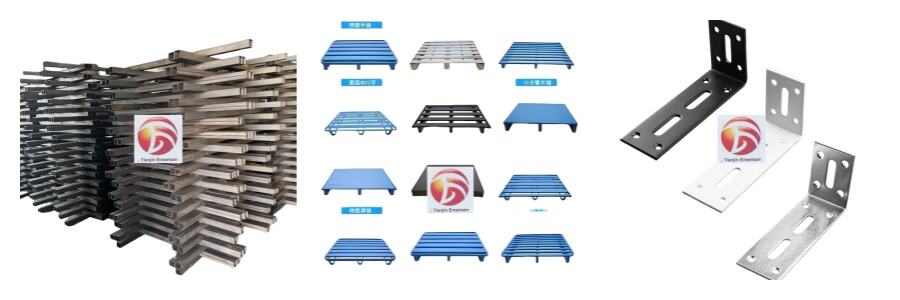

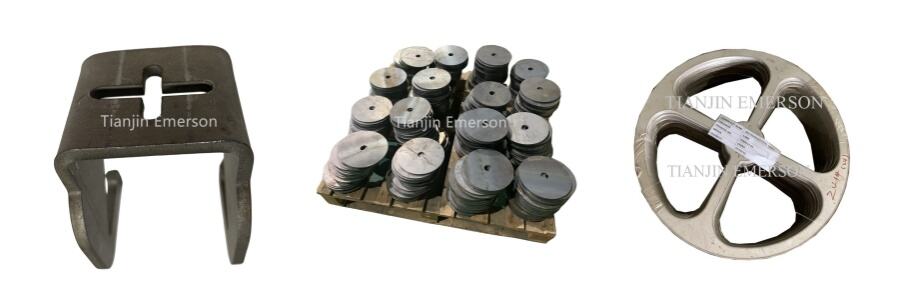

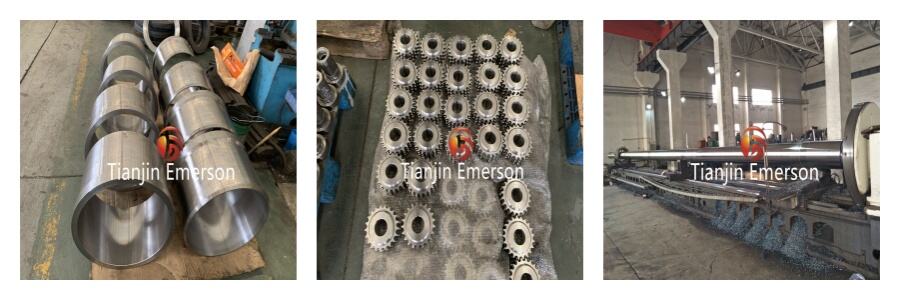

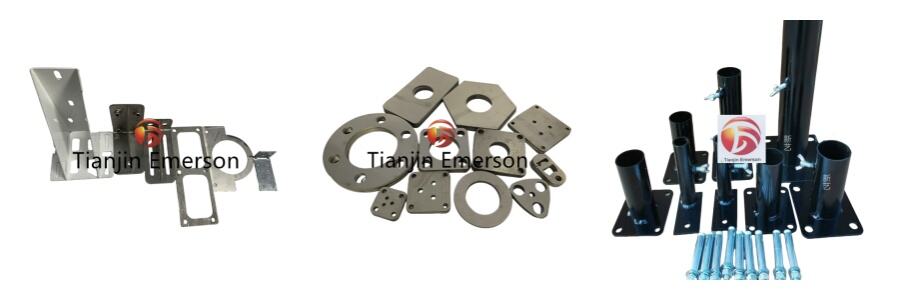

Metal Parts and Machine Parts
Customized drawings, please send us the drawings for cutting, bending, welding, tapping, etc
FAQ
Q: Does hardness increase after laser cutting? How is machinability?
A: The heat-affected zone width is <0.2 mm, and hardness increase generally does not exceed 30 HV. Subsequent bending and flanging die life are virtually unaffected. If tapping or drilling is required, we recommend laser cutting followed by deburring → CNC drilling sequence.
Q: Can it be used for beveling? What is the angle accuracy?
A: Supports 0–45° V/Y/K-type bevels in a single pass. Assembly clearance can be controlled within 0.3 mm, reducing weld volume by 40%.
Q: How corrosion-resistant is HR370B? Can it be used directly outdoors?
A: With SAPH370 substrate being hot-rolled steel, its inherent corrosion resistance is average. For outdoor applications, we recommend hot-dip galvanizing the entire piece after cutting (zinc coating ≥65 µm) to extend its service life.
Q: What is the maximum thickness you can cut?
A: We use a 20,000V laser cutting machine capable of cutting materials up to 50mm thick.
Q: How many days after cutting can the shipment be made?
A: Typically, it takes 5-10 days, depending on the quantity and complexity of the cutting. For large quantities and high complexity, it may take up to 20 days for shipment.
