Diameter 20-1200mm 45# Carbon Structural Steel Round Steel Shaft Bar
- Hot rolled, cold drawn, and forged round steel can be produced.
- We can undertake processing of incoming materials and small batch orders.
- Overview
- Recommended Products
Product Induction
45# Round Bar Polished Shafts are precision shaft components manufactured from high-quality medium-carbon structural steel 45# (S45C) billets. They undergo turning, centerless grinding, polishing, and optional surface treatments. These shafts offer excellent hardenability, high internal toughness, and combine strength, wear resistance, and cost-effectiveness. Available in diameters from 20 to 2000mm with customizable lengths. Suitable for automation, construction machinery, machine tools, packaging/printing, and other industries.
This material grade offers a low tonnage price while delivering mechanical properties superior to many alloy steels. It requires no preheating for welding, making it an excellent choice combining premium material characteristics with high cost-effectiveness.
Specification
| Product Name | Diameter 20-1200mm 45# Carbon Structural Steel Round Steel Shaft Bar |
| Technique | Hot rolled, cold drawn, and forged round steel can be produced |
| Grade | 45# |
| Material can be supply |
High-quality carbon steel,Low alloy structural steel,Alloy structural steel Alloy structural steel,Alloy structural steel,Alloy structural steel Alloy structural steel,Roll Steel,Bearing Steel Plastic Mold Steel,Cold Drawn Mold Steel,Hot Rolled Mold Steel |
| Size |
Round Bar：Ø20- Ø1200 Step axis：shaft diameter≤Ø1200 Module size：thickness150-1000×width within 1800×within 6m(aspect ratio≤6) |
| Processing Service | CNC Turning, Milling, Drilling |
| Certification | ISO 9001/RoHS |
| Application | Transmission mechanism, gears, linkages, bolts and nuts,conveyor rollers, rolling machine spindles, etc. |
| Field |
Pressure vessels, agricultural machinery Machinery, engineering machinery, metallurgy Mines, etc. |
45# Chemical Composition
| Grade | C | Mn | Si | Mn | P | S |
| 45# | 0.42–0.50 | 0.50-0.80 | 0.17-0.37 | 0.50-0.80 | 0.035 | 0.035 |
45# Mechanical Properties
| Grade | tensile strength（MPa） | yield strength（MPa） | Elongation% |
| 45# | ≥600 MPa | ≥355 MPa | 20-30 |

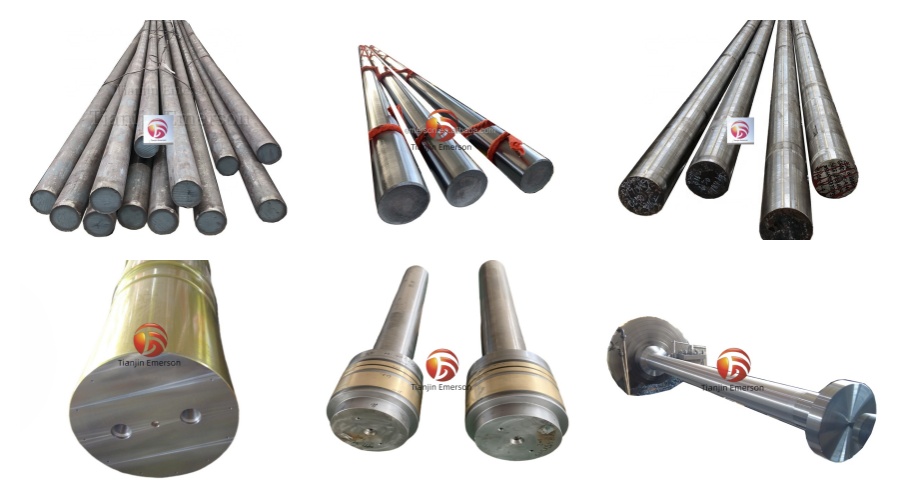

Product Pictures
Stocklist
| Carbon structural steel 45# | |||||||||
| Size | Weight/Ton | Size | Weight/Ton | Size | Weight/Ton | Size | Weight/Ton | Size | Weight/Ton |
| Ø28 | 3.69 | Ø32 | 3.498 | Ø38 | 15.676 | Ø40 | 17.784 | φ42 | 15.286 |
| Ø45 | 26.456 | Ø48 | 0.364 | Ø55 | 44.286 | Ø60 | 57.66 | Ø65 | 39.255 |
| Ø70 | 63.525 | Ø75 | 36.4 | Φ85 | 11.46 | Ø90 | 3.325 | Ø95 | 11.185 |
| Φ110 | 24.55 | Ø115 | 7.185 | Ø125 | 23.785 | Φ140 | 31.684 | Ø160 | 39.086 |
| Φ170 | 35.527 | Ø180 | 17.305 | Ø200 | 57.878 | Ø210 | 15.91 | Ø220 | 30.458 |
| Ø230 | 26.25 | Ø240 | 54.579 | Ø250 | 41.36 | Ø260 | 6.417 | Ø270 | 37.475 |
| Ø280 | 40.67 | Ø300 | 10.635 | Ø310 | 8.727 | Ø320 | 9.78 | Ø330 | 14.884 |
| Ø340 | 15.4 | Ø350 | 13.65 | ||||||
45# Round Steel Shaft Application
1. Automated production lines: Linear guides, transfer slides, and guide shafts for lifting mechanisms.
2. Logistics conveyance and roller systems: Non-powered rollers and shaft systems for belt conveyor idlers.
3. Machine tools/machining centers: X/Y-axis columns, lifting columns, or tailstock guide rods for small-to-medium lathes, engraving/milling machines, and laser cutters.
4. Hydraulic and pneumatic actuators: Piston rods for hydraulic cylinders and pneumatic cylinders.
5. Packaging, printing, and textile machinery.
6. Automotive and Power Tools: Engine valve pushrods, electric reciprocating saws, lawnmower drive shafts, etc.
7. Heavy Lifting and Mining Equipment: φ80-300 mm large-diameter solid or hollow shafts for port cranes, stacker-reclaimer slewing bearings, hydraulic support columns.

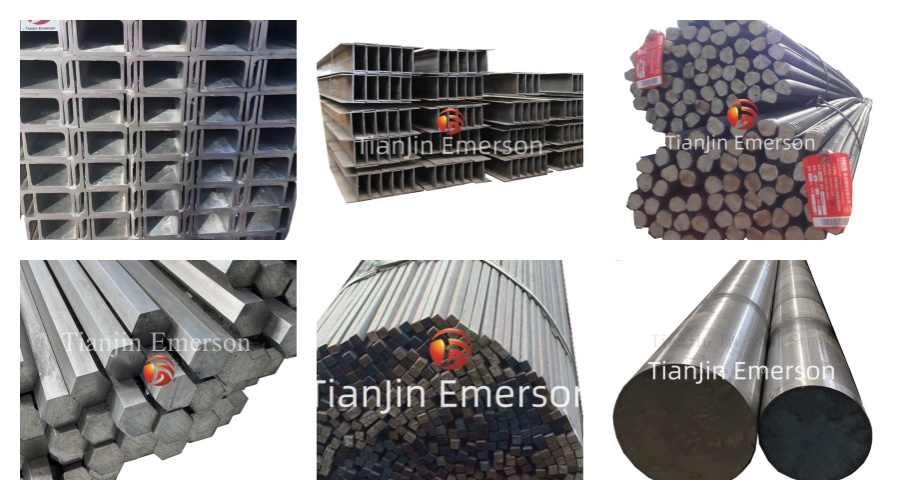

Other Steel Profile Product
We can also supply steel channels,steel angles,H beam,square bar,flat bar,rebars,steel wire,steel bar,bulb flat,etc.

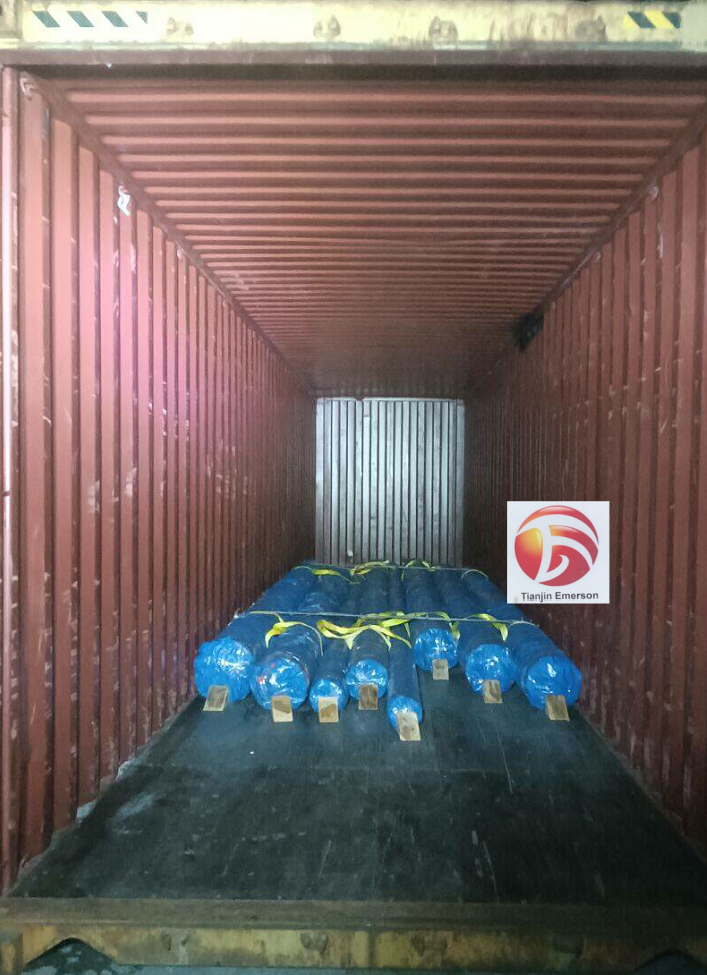

Packing
FAQ
Q: What are the common delivery conditions for 45# plain shafts?
A: ① Cold-drawn and precision-ground (soft shaft): Hardness ≈ HB170-210, easy to turn, suitable for subsequent machining.
② Quenched and tempered, precision-ground (hard shaft): Hardness HRC 28-32, optimal comprehensive mechanical properties, ready for direct installation.
③ Quenched and tempered + chrome plated: Surface HRC 60±2, wear-resistant and rust-proof, the mainstream solution for hydraulic piston rods and guide shafts.
Q: How do I choose between flexible shafts and rigid shafts?
A: If subsequent machining of keyways, tapping of internal holes, or welding is required, select flexible shafts;
For applications demanding high load capacity and wear resistance, choose rigid shafts or chrome-plated rigid shafts.
Q: What is the relationship between chrome plating thickness and service life?
A: Standard thicknesses of 0.02–0.05 mm suffice for most medium-to-low load linear bearings. For high-impact or dusty environments, thickness can be increased to 0.08–0.10 mm, though this raises costs by 15–20%.
