Aluzinc Galvanized Steel metal Sheet Galvalume steel coil az150
Support Sample, OEM/ODM Customization.
- Overview
- Recommended Products
Product Induction
AZ150 is a high-performance galvanized steel coil, where “AZ” stands for aluminum-zinc coating, and “150” indicates a total coating weight of 150 g/m² (approximately 75 g/m² per side).
1.Coating Composition:
55% Aluminum — Provides excellent corrosion resistance and high-temperature stability.
43.4% Zinc — Provides sacrificial cathodic protection, particularly at cuts and scratches.
1.6% Silicon — Improves coating adhesion and machinability.
2. Performance Advantages
Corrosion Resistance: 2–6 times more resistant than standard galvanized steel sheets, with a service life of 15–25 years.
High-Temperature Resistance: Can be used long-term in environments up to 315°C.
Thermal Reflectivity: Has twice the thermal reflectivity of galvanized steel sheets, reducing surface temperatures by 8–12°C.
Processability: Suitable for cold working processes such as stamping, shearing, and welding.

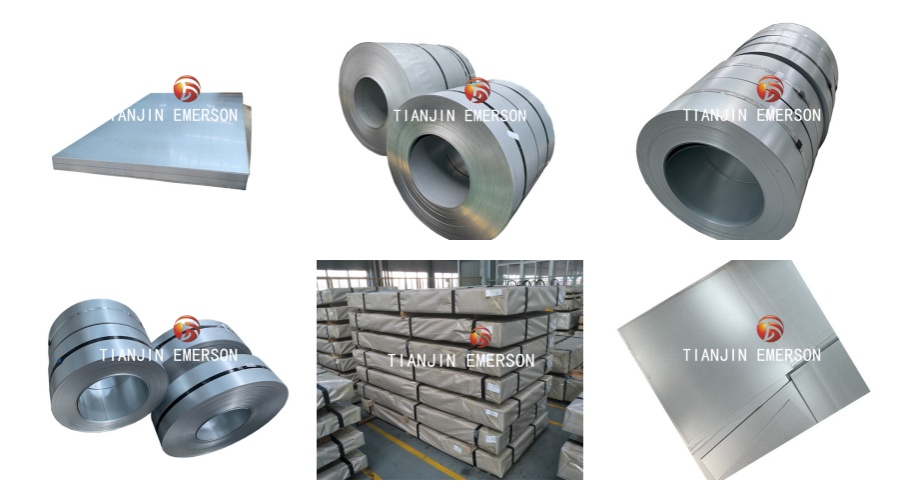

Product Pictures
Our factory produces various types of steel coils, including galvanized sheet coils, aluminum plated sheet coils, as well as carbon steel coils and stainless steel coils. MOQ is 1 ton, supporting sample customization.
Specification
| Product Name | Aluzinc Galvanized Steel metal Sheet Galvalume steel coil az150 |
Common Material Grades |
Steels for cold forming: DC51D+AZ, DC52D+AZ, DX51D+AZ, DX52D+AZ. Structural steel: S250GD+AZ, S300GD+AZ, S350GD+AZ, S550GD+AZ. General-purpose commercial: SGCC, SGCH, CGCC. |
Coil Weight |
3–10 tons per roll |
Tensile strength |
270–550 MPa (depending on the grade) |
Elongation |
24%-40% |
| Thickness | 0.12mm ~ 4.0mm |
| Width | 600mm ~ 1500mm |
Inner Diameter |
508mm or 610mm |
Application
Construction Industry: Roofing and exterior wall panels for industrial and residential buildings; garage doors, shutters, and fences; cladding systems for steel-structured industrial buildings.
Home Appliance Industry: Outdoor unit housings for air conditioners and exterior covers for ventilation systems; ovens and solar water heaters; electrical components.
Automotive Industry: Automotive mufflers, heat shields for exhaust pipes; underbody components, highway signs.
Industrial Sector: Electrical control cabinets, industrial freezers; vending machines, shipping containers.
FAQ
Q: What is the exact composition of the AZ150 coating?
A: The coating consists of 55% aluminum, 43.4% zinc, and 1.6% silicon.
Q: What are the standard specifications for AZ150?
A: Thickness: 0.3 mm, 0.4 mm, 0.5 mm, 0.6 mm, 0.8 mm, 1.0 mm, 1.2 mm, 1.5 mm.
Width: 1000 mm, 1200 mm, 1250 mm.
Q: How do you ensure the quality of the AZ150 coating? What are the testing standards?
A: We provide third-party SGS test reports to ensure that the coating weight meets specifications and that no corners are cut.
Q: What are the minimum order quantity (MOQ) and lead time?
A: The MOQ is 1 ton. The lead time is 7–20 days (for in-stock items).
